Semi-Powered Pallet Stacker

Material Handling Equipment


Description

Semi-Powered Pallet Stacker
SPS-10/12/15/10w/12w/15w

Feature:
• SPS-10 provides an electric powered hydraulic lifting, manually-propelled and load capacity 1000kg(2200lb), fork length 900mm(35.43"), adjustable width, lifting height 2500mm(98.4") or 3000mm(118") or 3500mm(137.8").
• In addition, sps-10w wide straddle version type is used for closed pallets. It has fork wheel 80mm(3.15") or 180mm(7.09") diameters for your choice and the straddle inner width will be 1240mm,1140mm, etc..
• Charger of 110v/12v-12a (build-in) is optional.
• Distance of straddle outer width has option 530mm for European pallets.
• Load capacity 1200kg(sps-12) and 1500kg(sps-15) are optional.

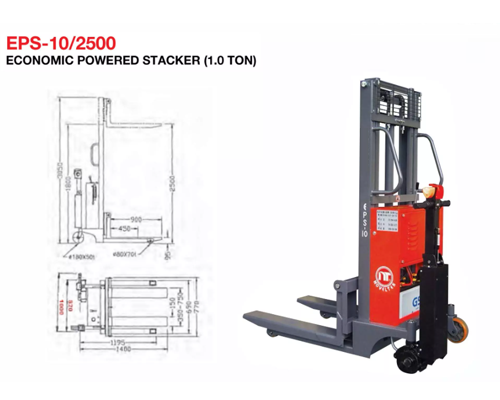

Specifications:
Item SPS-10
Mast Type Telescopic
Load Capacity 1000kg 2200lb
Load Center 450mm 17.72"
A Max. Fork Height 2500mm 98.37"
Service Weight 320kg 740lb
Battery 135AH/12V other options are available
Charging Current (220V) 12A (Build-In)
Lifting Motor 1.5KW/12V
Fork Wheels Material Φ80x70mm Φ3.15"x2.75"mm
Poly-urethane With Bearing
Steering and Caster Wheel Material Φ180x50mm Φ7.09"x2.00"mm
Poly-urethane With Bearing
B Overall Length 1450mm 57.09"
C Overall Width 770mm 30.31"
D Max. Mast Height 3030mm 119.29"
E Min. Mast Height 1780mm 70.08"
F Fork Length 900mm 35.43"
G Each Fork Width 150mm 5.91"
H Min. Fork Height 90mm 3.54"
J Fork Thickness 65mm 2.56"
K Distance of Forks 330-750mm 13.00"-29.53"
L Straddle Length 820mm 32.28"
M Each Straddle length 100mm 3.84"
N Distance of Straddle 690mm 27.17"
P Turning Radius 1350mm 53.15"
Q Length of Body 400mm 15.75"
Straddle Height 80 3.15"



+
