Manual Standard Oil Tank Rotating Stacker

MOTR-03/1400 (300kg)



Feature:

Hydraulic system uses a unique circuit and structure, so that hydraulic pump even more robust and durable.

While the fixed seal design, can be completely closed to prevent leakage and to achieve the effect, coupled with specific buffer design , users can freely control the rate of decline.

Oil drum Handling Tool



Manual-Type / Semi-Electric Type / Electric Type

General equipment are following 50 gallons drums "drum" as the design standard, so if your normal flow of 50 gallons of non-barrel drum, such as all kinds of plastic barrels. Other capacity drum, drum on the cover, the special shape of barrels, it is recommended to provide a sample barrel, so the designer will be designed to fit under the barrel of the fixture, turn only when safe. Can share all kinds of variety of bucket? The answer is not feasible, because the drums and plastic barrels in varying degrees of arc, when forced to share the oil will make the flip clip does not clamp tight and loose, at present only 50 gallon drums and plastic barrels sharing model, no other design.

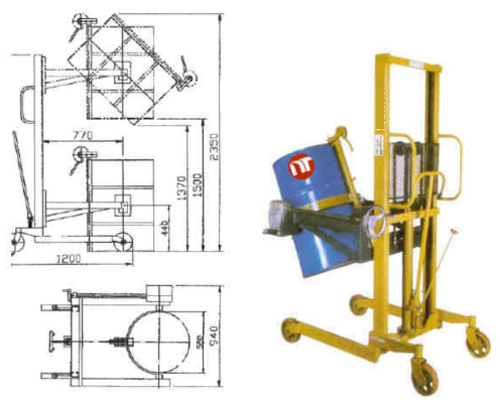

SPECIFICATIONS:

Item
Load	3000kg
Rose High Degree Of	1400mm
Radius Of Gyration	1250mm
Front And Rear Dimensions	180 x 50mm
Body Weight	195kg
Clear Height Of The Mast	1980mm
The Total Body Width	1200mm
Body Length	940mm
Drum Specifications	580mm x H890mm (standard barrel)
Maximum Height Of Drums	2350mm
Drums go to 45 degrees, the maximum height of the bottom ground	1370mm
Load Center	770mm
Center Above Ground Fixture	440mm
At The End Of Leg Length	770mm
