Description

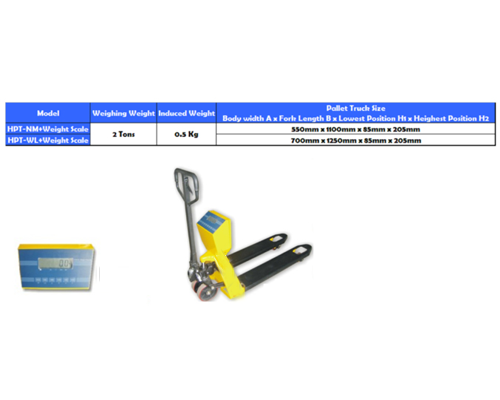

Hand Pallet Truck + Weight Display
Product Introduction
• Hydraulic pallet truck in manual hydraulic pallet weight sensors to increase accuracy and weight of the display device which consists of weighing system.
• Hydraulic pallet truck scales to achieve a cargo handling and weighing in parallel, each weighing data can be displayed automatically.
• Size small, the implementation of lightweight, comfortable lifting, turning easy, precise measurement of the advantages.
• Hydraulic pallet truck scales equipped with rechargeable battery pack charger, one charge can be used 55 to 60 hours, charging time is 8 to 12 hours.
Suitable for Use
• Mainly used for storage operations in stack pallets or packing of goods
• of the transfer of goods weighing, such as railway, highway inventory of
• goods weighing; company finished products, semi-finished goods out of
• storage libraries weighing and so on.
Function
• Hydraulic pallet truck and weighing a complete shift reactor
• Strong and durable hydraulic system
• Super heavy fork-resistant board design
• High-quality PU load wheel
• 4 special weight sensor
• Special weight display
• Rechargeable power supply
• Optional printer
Specifications:
|
Items |
APT-20 |
APT-25 |
APT-30 |
|
Load Capacity |
kg |
2000 |
2500 |
3000 |
|
Load Center |
mm |
600 |
600 |
600 |
|
Lifting Speed |
Empty |
sec |
1.5 |
1.5 |
1.5 |
|
Loaded |
sec |
2.0 |
2.0 |
2.0 |
|
Lowering Speed |
Empty |
sec |
2.5 |
2.5 |
2.5 |
|
Loaded |
sec |
2.5 |
2.5 |
2.5 |
Tyres(Soft Solid Tyres)
|
Items |
APT-20 |
APT-25 |
APT-30 |
|
Fork Wheels |
Size(Std) |
mm |
Φ83x75 |
|
Quantity L/R |
Standard |
- |
|
Size (OPT) |
- |
- |
|
Quantity L/R |
mm |
Φ83x90 |
|
Size |
Optional |
- |
|
Caster Wheels |
Size |
mm |
Φ140x60 |
|
Quantity L/R |
- |
- |
|
Material |
- |
- |
|
Drive Wheel |
Size |
mm |
Φ212x70 |
|
Material (Std) |
- |
- |
|
(OPT) |
- |
- |
|
Movement UP |
mm |
15 |
|
Movement Dow |
mm |
30 |
Drive
|
Items |
APT-20 |
APT-25 |
APT-30 |
|
Traveling Speed |
Empty |
Km/h |
6.0 |
6.0 |
6.0 |
|
Loaded |
Km/h |
5.5 |
5.5 |
5.5 |
|
Gradeability Speed |
Empty |
¢H |
18¢H |
18¢H |
18¢H |
|
Loaded |
¢H |
8¢H |
8¢H |
7¢H |
|
Weight (Exc. Battery) |
Kg |
480 |
480 |
490 |
Battery and Motor
|
Items |
APT-20 |
APT-25 |
APT-30 |
|
Battery 24V |
Ah/5hr |
184 |
184 |
240 |
|
Max.Charging Curent |
A/24V |
30 |
30 |
40 |
|
Motor |
Traveling |
kw |
1.8 |
1.8 |
1.8 |
|
Lifting |
kw |
2.5 |
2.5 |
2.5 |
|
Invertor |
traveling |
AC Stepless |
|
Lifting |
Contactor Type |
Steering & Brake
|
Items |
APT-20 |
APT-25 |
APT-30 |
|
Steering System |
Steering Arm |
|
Steering Arc. Total |
185 degrees |
|
Traveling Brake |
Type |
Eletromagnetic Spring Pressure |
|
Actuated Part |
Drive Wheel |
|
Parking Brake |
Type |
Eletromagnetic Spring Pressure |
|
Actuated Part |
Drive Wheel |
Fork Width
|
W1 |
W2 |
|
Overall Width |
Lnner Width |
|
mm |
mm |
|
580 Standard |
230 |
|
635 Optional |
285 |
|
685 Optional |
335 |
|
510 Optional |
160 |
Body
|
Items |
APT-20 |
APT-25 |
APT-30 |
|
|
mm |
mm |
mm |
|
Max. Fork Height |
205 |
205 |
205 |
|
Min. Fork Height |
83 |
83 |
83 |
|
Lifting Height of Cylinder |
122 |
122 |
122 |
|
Overall Truck Height |
1325 |
1325 |
1325 |
|
Height of Battery Room From |
750 |
750 |
750 |
|
Overall Truck Height |
730 |
730 |
730 |
|
Distance of Fork Wheels |
110 |
110 |
110 |
|
Distance From Center of Fork Wheels To The Front Fork |
- |
- |
- |
|
When The Forks Are At The Lowest |
190 |
190 |
190 |
|
When The Forks Are At The Highest |
250 |
250 |
250 |
|
Platfrom Length |
447 |
447 |
447 |
|
Platfrom Width |
600 |
600 |
600 |
|
Height of Platform When Folded |
145 |
145 |
145 |
|
Height of Platform When Opened |
45 |
45 |
45 |
