Description

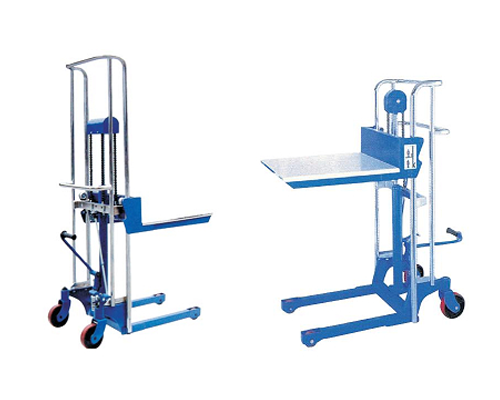

Mini Manual Pallet Stacker and Pallet Truck
MPS-04/1100/1100A/1500/1500A/1700/1700A/1820/1820A
Feature:
• Manual foot operated lifting hydraulic stacker
• One wheel with brake is standard
• Maximum fork lifting height: 1100~1820mm
• Single action pump
• Lifting Capacity: 400kg
• Max. Lifting Height: 110mm
• Overall Width: 600mm
• Overall Height(MM): 1350 ~ 2070mm
Specifications:
|
Model: MPS-04 |
1110 |
1100A |
1500 |
1500A |
1700 |
1700A |
1820 |
1820A |
|
Loda Capacity (kg) |
400 |
400 |
400 |
400 |
400 |
400 |
400 |
400 |
|
Max. Lifting Height (mm) |
1100 |
1100 |
1500 |
1500 |
1700 |
1700 |
1820 |
1820 |
|
Fork Width Type |
Fixed |
Adjust |
Fixed |
Adjust |
Fixed |
Adjust |
Fixed |
Adjust |
|
Overall Height (MM) |
1350 |
1350 |
1750 |
1750 |
1950 |
1950 |
2070 |
2070 |
|
Overall Width (MM) |
600 |
600 |
600 |
600 |
600 |
600 |
600 |
600 |
|
Each Fork Width (MM) |
110 |
110 |
110 |
110 |
110 |
110 |
110 |
110 |
|
Fork Length (MM) |
610 |
640 |
610 |
60 |
610 |
640 |
610 |
640 |
|
Overall Length (MM) |
1050 |
1160 |
1050 |
1160 |
1050 |
1160 |
1050 |
1160 |
|
Max. Fork Outer Width (MM) |
550 |
540 |
550 |
540 |
550 |
540 |
550 |
540 |
|
Max. Fork Inner Width (MM) |
330 |
315 |
330 |
315 |
330 |
315 |
330 |
315 |
|
Straddle Length (MM) |
565 |
675 |
565 |
675 |
565 |
675 |
565 |
675 |
|
Min. Fork Height (MM) |
85 |
85 |
85 |
85 |
85 |
85 |
85 |
85 |
|
Front Wheel (MM) |
75x34 |
75x34 |
75x34 |
75x34 |
75x34 |
75x34 |
75x34 |
75x34 |
|
Rear Wheel (MM) |
150x40 |
150x40 |
150x40 |
150x40 |
150x40 |
150x40 |
150x40 |
150x40 |
|
Platform (LxW) (MM) |
610x570 |
640x570 |
610x570 |
640x570 |
610x570 |
640x570 |
610x570 |
640x570 |
|
Service Weight (kg) |
92 |
97 |
108 |
113 |
112 |
117 |
118 |
121 |
|
Remarks |
A wheel brake (standard), two wheel brakes (optional), single mast |
