PRODUCT DESCRIPTION

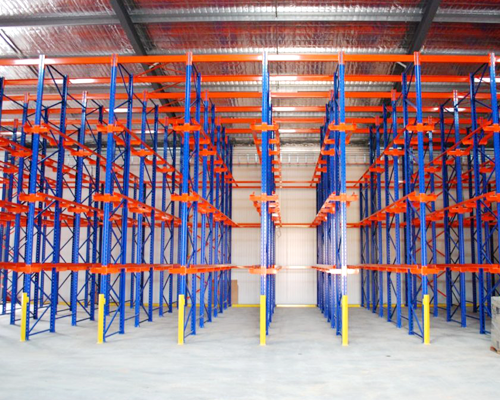

• Drive-in Pallet Racking System may offer solution on high storage capacity requirement. It eliminates aisle and lane produces a high storage density at the expenses of selectivity. The first pallet into a lane will be the last out. However, if pallets are received and dispatched in batches this is would not pose as a disadvantage. Each pallet is supported hence damage from crushing is eliminated.



FEATURES

• Mechanical handling equipment and operation of racking system suit either reach truck or counter balance truck operation.

• Limited stock rotation.

• Limited order picking. Only 25% ~ 30% selectivity; slow picking rate.

• Good product protection. Each pallet is supported on pallet rails.

• Average floor area utilization.

• 50% net pallet area m2 usage of overall warehouse area.



SPECIFICATIONS

• Upright profiles are made of high tensile steel and very rigid. These are then bolted to form the stable frame using horizontal and diagonal struts.

• 50:50 perforations.

• Large Footplates ensure even distribution of load to floor.

• Upright lug pitch 50:50 adjustable. Upright width come in 80, 90, 105mm and various thickness.

• Longitudinal beams welded with 4-hook clips. Guarantee a positive connection to the uprights.

• Supplied with locking pin to prevent the beam from being lifted out accidentally.



CERTIFICATIONS

• S.E.M.A (Storage Equipment Manufacturer Association) Standard Certification.

• ISO 9001 : 2008 Quality Certification.
