Advanced Counterbalanced Walkie Stacker( Ac System)
ACS-08/10/12/15
Feature:
• With EPS(Electronic Power Steering) system , very easy to drive
• Mast reach electric stacker
• Advanced AC motor product
• Without carbon brush, easy maintenance
• Saves you 30% on your electricity costs
• FRP body cover and battery cover
• Lead-free PU baked enamel painted
• Polyoxymethylene steering arm
• Mast draw back reduces truck weight, reduces truck length and increases stability
• Pollution-free, quiet, safe, durable and reliable
• Optional Items: -35°C cold storage version and foldable side protection guards are available as options
Specifications:
|
Item |
ACS-08 |
ACS-l0/12 |
ACS-15 |
|
Lifting |
|
Rated Capacity |
800kg |
1000kg/1200kg |
1500kg |
|
Load Center |
500mm |
500mm |
500mm |
|
Forks (TxWxL) |
40x100xl070mm |
|
Lifting Speed¡@ |
Loaded |
130mm/s |
125mm/s |
120mm/s |
|
Empty |
190mm/s |
|
Lowering Speed |
Loaded |
180 mm/s |
|
Empty |
208 mm/s |
|
Travel Speed |
Loaded |
5km/h |
|
Empty |
5.5km/h |
|
Gradeability |
Loaded |
6% |
|
Empty |
8% |
|
Fork Tilting Angle (F/R) |
¡@ |
2°/8° |
|
Weight of Truck |
With Battery |
1500kg |
1600kg/1800kg |
2000kg |
|
Without Battery |
1715kg |
1815kg/2015kg |
2215kg |
|
Wheels |
|
Fork Wheels |
Dimension |
φ205x70x2mm |
|
Material |
PU |
|
Drive Wheel |
Dimension |
φ235x120x1mm |
|
Material |
PU |
|
Battery & Motors |
|
Battery Capacity at 5 Hours Charge (24V) |
240AH |
240AH |
240AH |
|
Max. Charging Current (24V) |
40A |
40A |
40A |
|
Drive Motor Power (24V) |
1.6kw |
1.6kw |
1.6kw |
|
Steering Motor Power (24V) |
0.4kw |
0.4kw |
0.4kw |
|
Lifting Motor Power (24V) |
3kw |
3kw |
3kw |
|
Controller |
AC Stepless |
|
Steering & Brake |
|
Steering System |
Steering Arm |
|
Steering Arc. Total |
¡@ |
185 Degree |
|
Traveling |
Actuated |
Electromegnetic Epring Preeeure |
|
Type |
Drive Wheel |
|
Parking Brake |
Actuated |
Electromegnetic Epring Preeeure |
|
Type |
Drive Wheel |
|
Alarm Device |
Standard |
|

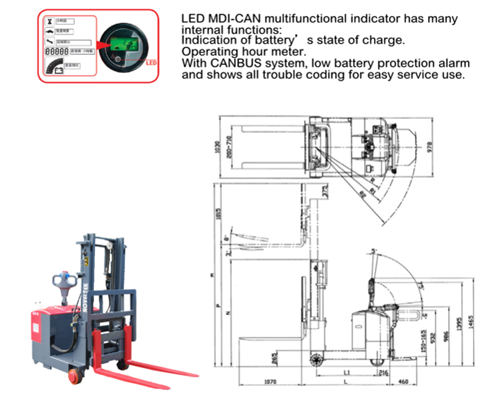

Model |
ACS-08 |
ACS-10/12 |
ACS-15 |
|
Item |
mm |
mm |
mm |
|
Truck Length |
L |
1345 |
1445 |
1795 |
|
Truck Width |
978 |
978 |
978 |
|
Wheel Base |
L1 |
867 |
967 |
1317 |
|
Turning Radius |
R |
1180 |
1280 |
1630 |
|
Turning Radius |
R1 |
1325 |
1425 |
1775 |
|
Turning Radius |
R2 |
1630 |
1730 |
2080 |
|
Fork Wheel Width |
1055 |
|
Fork Adjustable Width |
200-710 |
|
Height of Straddle |
265 |
|
Height of Steering Arm |
1465 |
