Description

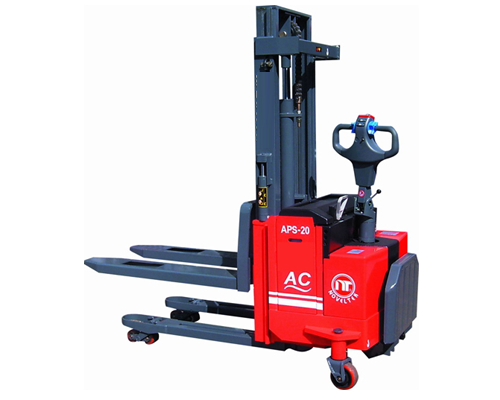

Powered Pallet Stacker (PPS) AC System
Feature:
• Ride-on drive, easy handing
• Quiet, safety, durable, reliable
• No pollution
• Baked enamel coating
• Electric drive, electric lifting
• Straddle can lift 200mm. This stacker can carry 2 pieces of european open pallets at same time. It also has higher gradeability.
• Body length is 855mm only
• It can turn in 2.1 meter wide aisle
• Max. Fork lifting height between 2 meter and 6 meter, triple stage, full free lift mast, -35°C cold storage version etc. Are available as options.
Item
|
PPS-10
|
PPS-15
|
PPS-18
|
PPS-20
|
Lifting
|
Rated Capacity
|
1000kg
|
1500kg
|
1800kg
|
2000kg
|
Load Center
|
600mm
|
600mm
|
600mm
|
600mm
|
Lifting Speed
|
Empty
|
200mm/s
|
156mm/s
|
156mm/s
|
150mm/s
|
Loaded
|
110mm/s
|
100mm/s
|
90mm/s
|
100mm/s
|
Lowering Speed
|
Empty
|
340mm/s
|
310mm/s
|
310mm/s
|
300mm/s
|
Loaded
|
570mm/s
|
600mm/s
|
610mm/s
|
570mm/s
|
Drive
|
Travel Speed
|
Empty
|
6.0km/h
|
6.0km/h
|
6.0km/h
|
6.0km/h
|
Loaded
|
5.0km/h
|
5.0km/h
|
5.0km/h
|
5.0km/h
|
Gradeability
|
Empty
|
9%
|
12%
|
12%
|
12%
|
Loaded
|
7%
|
9%
|
9%
|
9%
|
Weight
|
Weight of Truck
|
With Battery
|
998kg
|
1025kg
|
1042kg
|
1080kg
|
Without Battery
|
783kg
|
810kg
|
827kg
|
865kg
|
Wheels
|
Fork Wheels
|
Dimension
|
φ83x90mm
|
φ83x75
|
φ83x75mm
|
φ83x75mm
|
Quantity(R/L)
|
1/1
|
2/2
|
2/2
|
2/2
|
material
|
vulcollan
|
Castor wheels
|
dimension
|
φ140x60mm
|
φ140x60mm
|
φ140x60mm
|
φ140x60mm
|
Quantity(Ft/L)
|
1/1
|
1/1
|
1/1
|
1/1
|
Material
|
PU
|
|
dimension
|
φ212x70mm
|
φ212x70mm
|
φ212x70mm
|
φ212x70mm
|
Material
|
Vulcollan
|
Movement Up
|
15mm
|
15mm
|
15mm
|
15mm
|
Movement Down
|
30mm
|
30mm
|
30mm
|
30mm
|
Battery & Motors
|
Battery Capacity at 5 Hours Discharge
|
180AH/24V
|
240AH/24V
|
240AH/24V
|
240AH/24V
|
Max. Charging Current
|
30A/24V
|
40A/24V
|
40A/24V
|
40A/24V
|
Drive Motor Power
|
1.5kw/24v
|
1.5kw/24v
|
1.5kw/24v
|
1.5kw/24v
|
Lifting Motor Power
|
2.0kw/24v
|
3.0kw/24v
|
3.0kw/24v
|
3.0kw/24v
|
Speed Control Principle-Number of Steps
(3 speed is optional, electronic mostet stepless is standard.)
|
Reeietence-3 (option)
|
Steplees
|
Streering & Brake
|
Steering System
|
Steering Arm
|
Steering Arc. Total
|
185 degree
|
Traveling Brake¡@ & Parking brake¡@
|
Type
|
Electromegnetic epring preeeure
|
Actuated Part
|
Drive wheel
|
