Advanced Powered Pallet Stacker (APS)

Project Details

Advanced Powered Pallet Stacker (APS)

Material Handling Equipment


Description

Advanced Powered Pallet Stacker (AC System)

APS-10/15/18/2


Feature:
• Ride-on drive, easy handing
• Quiet, safety, durable, reliable
• No pollution
• Baked enamel coating
• Electric drive, electric lifting
• Straddle can lift 200mm. This stacker can carry 2 pieces of european open pallets at same time. It also has higher gradeability.
• Body length is 855mm only
• It can turn in 2.1 meter wide aisle

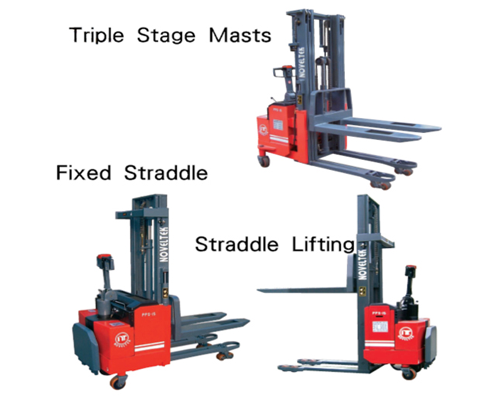

• Max. Fork lifting height between 2 meter and 6 meter, triple stage, full free lift mast, -35°C cold storage version etc. Are available as options.

Specifications:
Item PPS-10 PPS-15 PPS-18 PPS-20
Lifting
Rated Capacity 1000kg 1500kg 1800kg 2000kg
Load Center 600mm 600mm 600mm 600mm
Lifting Speed Empty 200mm/s 156mm/s 156mm/s 150mm/s
Loaded 110mm/s 100mm/s 90mm/s 100mm/s
Lowering Speed Empty 340mm/s 310mm/s 310mm/s 300mm/s
Loaded 570mm/s 600mm/s 610mm/s 570mm/s
Drive
Travel Speed Empty 6.0km/h 6.0km/h 6.0km/h 6.0km/h
Loaded 5.0km/h 5.0km/h 5.0km/h 5.0km/h
Gradeability Empty 9% 12% 12% 12%
Loaded 7% 9% 9% 9%
Weight
Weight of Truck With Battery 998kg 1025kg 1042kg 1080kg
Without Battery 783kg 810kg 827kg 865kg
Wheels
Fork Wheels Dimension φ83x90mm φ83x75 φ83x75mm φ83x75mm
Quantity(R/L) 1/1 2/2 2/2 2/2
material vulcollan
Castor wheels dimension φ140x60mm φ140x60mm φ140x60mm φ140x60mm
Quantity(Ft/L) 1/1 1/1 1/1 1/1
Material PU - - -
Drive Wheel dimension φ212x70mm φ212x70mm φ212x70mm φ212x70mm
Material Vulcollan
Movement Up 15mm 15mm 15mm 15mm
Movement Down 30mm 30mm 30mm 30mm
Battery & Motors
Battery Capacity at 5 Hours Discharge 180AH/24V 240AH/24V 240AH/24V 240AH/24V
Max. Charging Current 30A/24V 40A/24V 40A/24V 40A/24V
Drive Motor Power 1.5kw/24v 1.5kw/24v 1.5kw/24v 1.5kw/24v
Lifting Motor Power 2.0kw/24v 3.0kw/24v 3.0kw/24v 3.0kw/24v
Speed Control Principle-Number of Steps
(3 speed is optional, electronic mostet stepless is standard.)		 Reeietence-3 (option)
Steplees
Streering & Brake
Steering System Steering Arm
Steering Arc. Total 185 degree
Traveling Brake¡@ Type Electromegnetic epring preeeure
Actuated Part Drive wheel
Parking brake¡@ Type Electromegnetic epring preeeure
Actuated Part Drive wheel
Model (PPS) 10 15 18 20
Item mm mm mm mm
Overall Fork Width A 580 580 580 580
Each Fork width B 190 190 190 200
Fork Inner Width C 200 200 200 180
Fork Length D 1150 1150 11150 1150
Front End Lengt E 100 100 100 100
Overall Truck Width F 850 850 850 850
Length PF Body (G1) 795 815 815 815
- (G2) 855 875 875 875
- (G3) 1235 1255 1255 1255
Turning Radius (H1) 1620 1630 1630 1630
- (H2) 1680 1690 1690 1690
- (H3) 2060 2070 2070 2070
Min. Fork Height (J) 90 90 90 90
Straddle Lift (K) None 205 205 205
Each Straddle Width - 150 150 150 150
Straddle Outer Width - 540 540 540 540
Straddle Inner Width - 240 240 240 240


Mast Types Max. Fork Height (M) mm
PPS-10/15/15/20 PPS-15/18/20
2000 2500 3000 3500 4000 4500 5000 5500 6000
Duplex Mast Telescopic
Min. mast height (N) 1540 1790 2040 2290 2540 - - - -
Max. mast height (P) 2495 2995 3495 3995 4495 - - - -
Duplex Mast Hi-Lo (PPS-10 2500/3000/3500/4000 do not apply)
Min. mast height (N) 1540 1790 2040 2290 2540 - - - -
Msx. mast height (P) 2495 2995 2395 3995 4495 - - - -
Free lift (L) 935 1185 1435 1685 1935 - - - -
triple stage mast Hi-Lo (PPS-10 3000/3500 do not apply)
Min. Mast Height (N) - - 1540 1707 1874 2041 2208 2375 2542
Max. Mast Height (P) - - 3530 4030 4530 5030 5530 6030 6530
Free Lift (L) - - 1095 1260 1430 1595 1760 1950 2093



+
